FOSC-GJS-D315M 144Cores Dome Type Mechanical Seal Fiber Splice Closure can be used as joint box to protect fiber splice connection of fiber cables, and as branch application for cables of bunchy fiber and ribbon fiber. It is suitable for aerial, duct, or buried applications. 24 fiber splice trays or 1×8, 1×16 Micro PLC splitters are pre-installed according to customer’s requirement, the splice capacity ranges from 24 to 144 fibers. The splice enclosure is sealed by mechanical.

Description
Name: 144Cores Dome Type Mechanical Seal Fiber Splice Closure
Model No.: FOSC-GJS-D315M
Dimension (HxW): 475mm×210mm

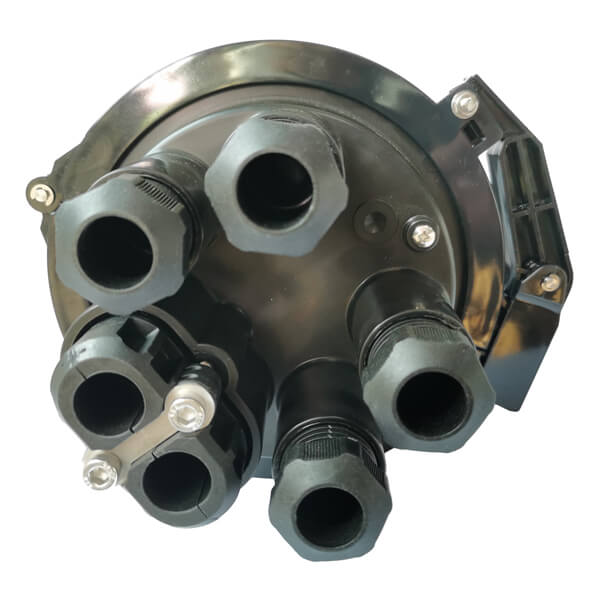

Cable Entry Port: 1xOval port for uncut cable of 10-17mm;
Cable Exit Ports: 4xRound ports for single cable of 8-17mm
Splitter Type: 1×8, 1×16 or 1×32 Micro PLC Splitter Optional
Splice tray: 24 Single cores
Number of Splice Tray: 6 Trays
Max Capacity of FOSC: 24-144Cores

Sealing Structure: Mechanical Sealing

Feature
144Cores Dome Type Mechanical Seal Fiber Splice Closure Main Features
1. IP Protection level: IP68;
2. Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
3. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
4. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
5. The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct or divergent connection.
6. The splice closure can be used in duct, buried, pole mount, etc.
