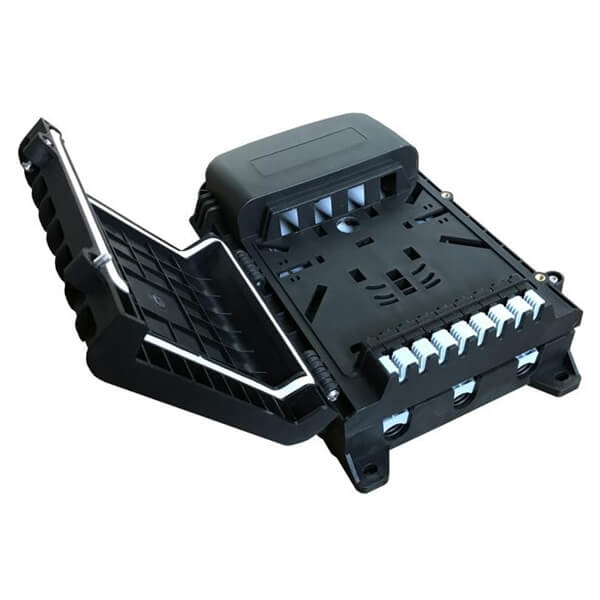

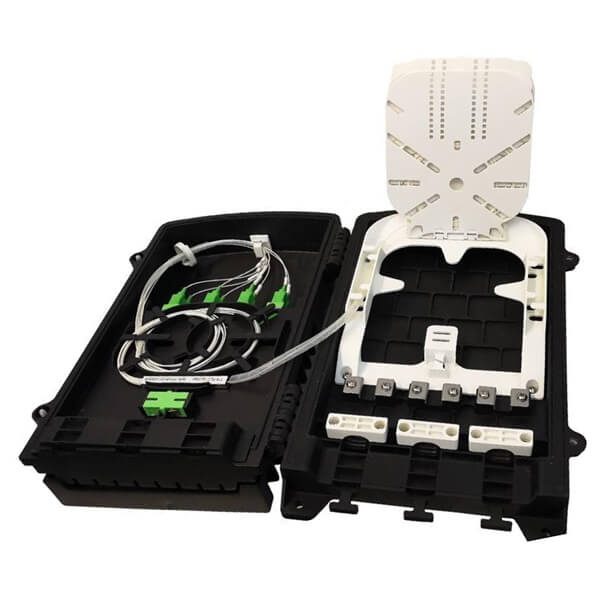

8 Cores FTTH CTO Fiber termination box for drop cable is a new designed for a distribution box and a termination point for the feeder cable to connect with drop cable in FTTX network system. The CTO FTTH fiber termination box has 3 main cable ports for 12mm diameter and 8 drop cable ports. The fiber terminal closure accommodates up to 24 fusion splices (or 8 mechanical splices), one 1×8 PLC splitters and 8 SC adapters. The fiber distribution box are made of high performance plastic material, and suitable for aerial, wall mount and pole mount with indoor/outdoor environment application.

Description
8 Cores FTTH CTO Fiber termination box for Drop Cable
Part No.: FLK-FAT-208H
Dimension: 255×168×80 mm
Material: MPP plastic
Entry Cable Ports: 3 ports for 12mm cable
Drop Cable Ports: 8×drop cable of φ3mm or 2x3mm
Adapter Type: 8xSC SX or 8xLC DX
Max. Splicing Capacity: 24 Fibers (2PCS *12 Splice Trays)
Micro Splitter: 1×4 or 1×8 Micro splitter optional

Mounting Type: Aerial, Wall mount or Pole mount

Feature
8 Cores FTTH CTO Fiber termination box for Drop Cable
1. Water-proof design with IP65 Protection Level.
2. 3 ports of entry cable and 8 ports for drop cable
3. All stainless metal plate and anti-rusting bolts, nuts
4. Fiber bend radius control more than 40mm
5. Suitable for the fusion splicer or mechanical splice
6. 1 Pcs of 1*8 PLC Splitter can be installed as an option
7. Mechanical sealing structure and mid-span cable entry.
8. Can be used indoor and outdoor, aerial, wall mount and pole mount.
