Fiber Optic Termination Box

FLK-AFAT-327  16 Port Fiber Optic Termination Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network. The fiber terminal box allows 16pcs drop cable with fast connector as output ports. It provides solid protection and easy management for the FTTx network building. The fiber termination box can splice and connect the optical fibers in manhole, pole or wall mounted for both indoor and outdoor use.
Item No.: FLK-AFAT-327
Dimension: 208×241×117mm
Body material: Modified P.P
Entry cable ports: 1ports PG21
Entry cable diameter: Φ13-18mm
Drop cable ports: 16 ports SC Pre-terminated Drop Cable
Adapter number: 16xSC SX Adapters
Splice Tray: 1×12 Cores tray +1x6cores tray
Max. Splicing Capacity: 18 fibers
PLC Splitter (optional): 2pc 1*8 or 1pcs 1*16 micro PLC splitter

Sealing Structure: Mechanical Sealing and Clip lock

1.IP Protection Grade: IP65
2.The fiber terminal box used for drop cables with Fast connector.
3.Max hold 8pcs SC simplex adapters
4.Available for 2pc 1:4 or 1 pcs 1:8 micro PLC splitter optional
5.Seal with silicon rubber ring at the closure body and entry ports.
6.Adopt plastic clip lock for easy reopen and maintenance
7.Applicable for wall-mounted or pole-mounted installation

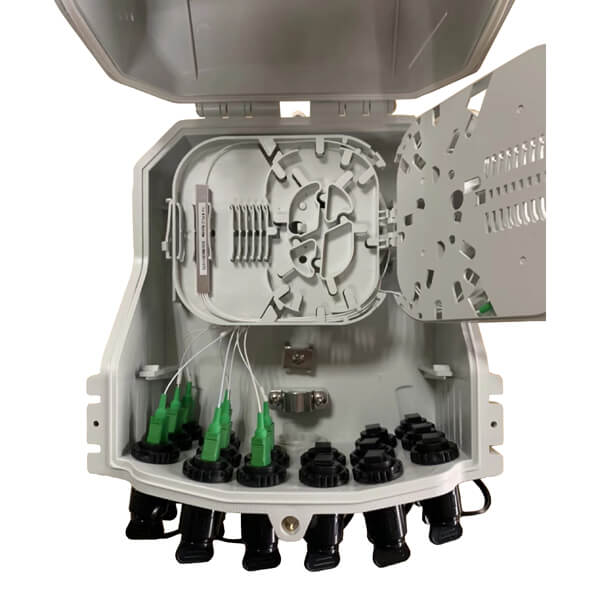

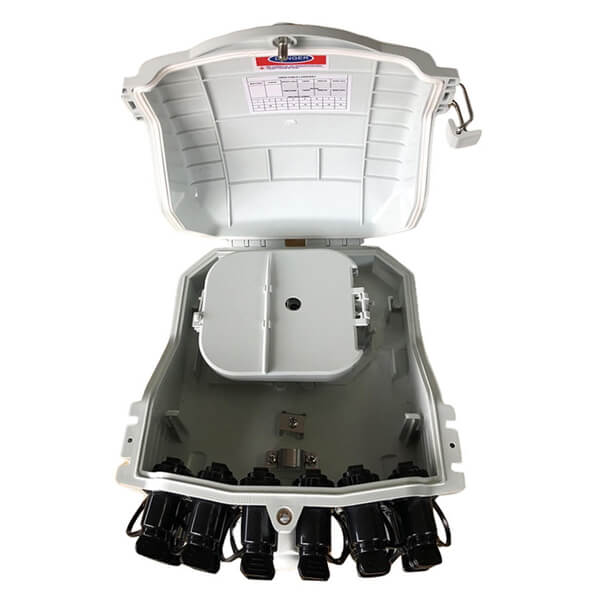

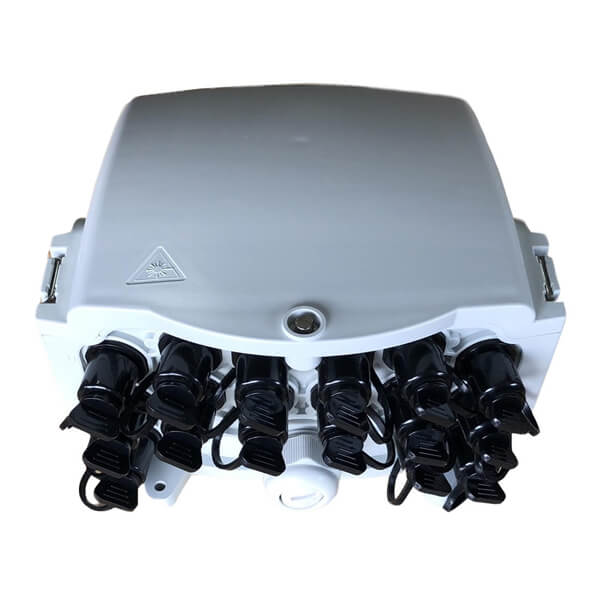

Product details
